Magnetic Particle Test: A Comprehensive Guide

Magnetic Particle Test (MPT) is a widely used non-destructive testing (NDT) method. It detects surface and near-surface discontinuities in ferromagnetic materials, such as iron, nickel, cobalt, and their alloys. This technique is renowned for its speed, cost-effectiveness, and relative ease of application, making it a preferred choice across various industries, including aerospace, automotive, marine, power generation, and oil and gas sectors

Magnetic Particle Testing (MPT) operates by magnetizing the component under inspection. If defects are present, they disrupt the magnetic field, causing leakage fields. Applying fine ferromagnetic particles to the surface results in these particles clustering at the leakage sites, forming visible indications of discontinuities. This method enables quick and reliable detection of flaws that could compromise the integrity of critical components.

This article explores the history of Magnetic Particle Testing (MPT), covering its magnetization methods, principles, and equipment. It explains the procedure, detectable discontinuities, advantages, and applications. Additionally, it highlights safety measures and recent advancements, emphasizing MPT’s role as a reliable non-destructive testing technique for ensuring material integrity.

Historical Background of Magnetic Particle Test (MPT)

Magnetic Particle Testing (MPT) has played a crucial role in non-destructive testing (NDT) for over a century. It all began in 1868. Inspectors magnetized cannon barrels and used a magnetic compass. They detected defects by watching needle deviations. As technology advanced, MPT techniques improved significantly. By the early 1900s, industries started refining the process, and by the 1930s, railroads widely adopted MPT to inspect metal components and enhance safety. Over the years, further advancements in magnetization techniques, fluorescent magnetic particles, and portable equipment have made the technique more accurate and convenient. Today, MPT continues to be an essential tool across various industries, ensuring the reliability and safety of critical components.

Magnetic Particle Testing Principle

Ferromagnetic materials, such as iron, nickel, and cobalt, strongly attract magnetic fields. Their unique atomic structure allows groups of atoms to align in the same direction, forming magnetic domains. In an unmagnetized state, these domains are randomly arranged, resulting in no net magnetization. However, when exposed to an external magnetic field, the domains shift and align with the field. This alignment creates a strong overall magnetic effect, making ferromagnetic materials highly responsive to magnetization.

Magnetic Particle Testing (MPT) detects surface and near-surface flaws in ferromagnetic materials. The process starts by magnetizing the part, either locally or entirely. If a flaw like a crack is present, it distorts the magnetic field, creating flux leakage. Fine ferromagnetic particles are applied to the surface. These particles gather at the leakage points, forming visible indications. This buildup reveals the flaw’s location, size, and shape. MPT is a reliable method for identifying defects in critical components.

The effectiveness of MPT depends on factors such as the type of current used for magnetization. Alternating current (AC) is typically used for detecting surface flaws. Direct current (DC) is more effective for subsurface flaw detection.

MPT provides a reliable method for finding defects. Basically, this is done by understanding the interaction between magnetic fields and ferromagnetic materials. These defects compromise the integrity of critical components.

Types of Magnetization Methods in Magnetic Particle Testing

Magnetic Particle Testing (MPT) employs two primary magnetization techniques: direct and indirect magnetization.

Direct Magnetization

In direct magnetization, an electric current flows through the test object, generating a magnetic field within the material. This method is highly effective for finding out surface and near-surface flaws. Inspectors typically use two common approaches: clamping the component between contact heads or applying current through prods. As the current passes through, it creates a circular magnetic field around its path. If a defect exists, it disrupts the magnetic flux, causing magnetic particles to gather and reveal the flaw. To ensure accuracy, proper contact is essential to prevent arcing, while current levels must be carefully controlled to avoid overheating or damage. Due to its simplicity and reliability, direct magnetization remains widely used in industrial applications for flaw detection.

Indirect Magnetization

Indirect magnetization, also known as magnetization by induction, creates a magnetic field in the test object without direct electrical contact. This method involves placing the component inside a current-carrying coil or using a yoke to generate an external magnetic field. As a result, the material becomes magnetized, allowing defects to be detected. This technique is useful because it does not require direct current application. It is especially beneficial for inspecting components where direct magnetization is impractical. Additionally, it ensures even magnetization across complex shapes, improving the accuracy and efficiency of Magnetic Particle Testing (MPT).It is ideal for components with complex shapes or when testing specific areas. However, the field’s strength and orientation must be carefully controlled to ensure accurate and sensitive flaw detection.

Comparison of Magnetization Techniques

Factor	Direct Magnetization	Indirect Magnetization
Magnetization Method	Electric current passes directly through the test object.	External magnetic field induces magnetization.
Field Strength	Produces a strong magnetic field.	May generate a weaker magnetic field.
Suitability	Best for simple-shaped components.	Ideal for complex-shaped components.
Electrical Contact	Requires direct contact, which may not be feasible for all parts.	No direct electrical contact, reducing arcing risk.
Application	Effective for detecting surface and near-surface flaws.	Suitable for localized inspections and components sensitive to direct currents.
Limitations	Risk of overheating and arcing if not properly controlled.	Field strength and orientation must be carefully managed for accuracy.

Equipment and Materials Used in Magnetic Particle Test

Magnetic Particle Testing (MPT) uses different tools and materials to find surface and near-surface flaws in ferromagnetic materials. It requires magnetizing equipment, magnetic particles, and suspension mediums for accurate defect detection.

Magnetizing Equipment

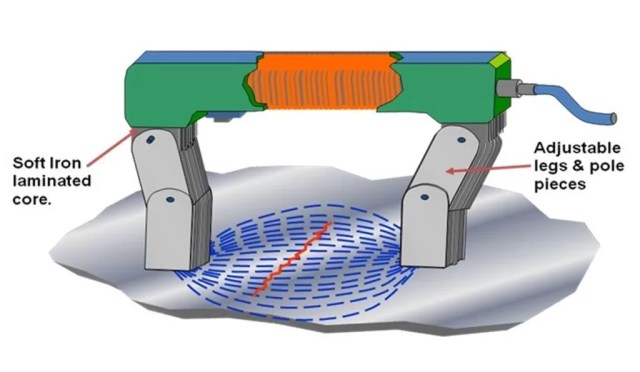

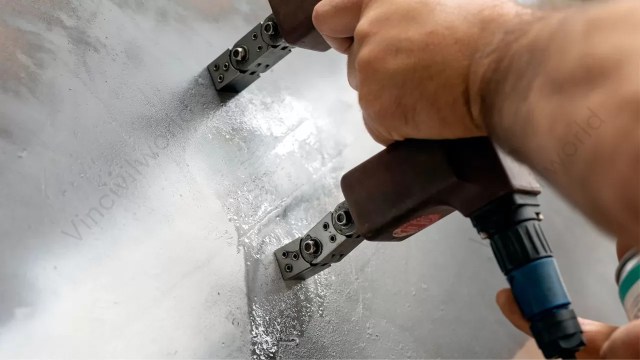

• Yokes are Portable devices that create a magnetic field between two poles. They help inspect specific areas and are popular for their flexibility and ease of use.

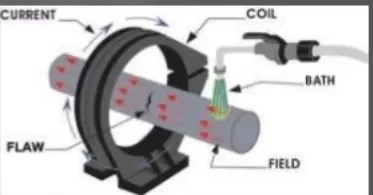

• Electromagnetic coils generate a longitudinal magnetic field when current flows through them. Placing a test object inside the coil induces magnetization, making it ideal for simple-shaped components.
• Prods are Handheld electrodes send current directly into the test object, forming a localized magnetic field. They work well for inspecting welds and targeted areas but need careful handling to prevent surface damage.

Types of Magnetic Particles

• Dry Particles are Finely milled ferromagnetic powders applied directly to the test surface. They are ideal for detecting discontinuities on rough or uneven surfaces and in high-temperature environments.
• Wet Particles are Magnetic particles suspended in a liquid carrier, such as water or oil. This method enhances particle mobility, increasing sensitivity to fine defects. Wet suspensions are particularly useful for smooth surfaces and can be applied using spray systems.

Suspension Mediums and Their Applications

• Water-Based Suspensions utilize water as the carrier fluid, often with added wetting agents to improve particle dispersion and surface coverage. They are environmentally friendly and suitable for a wide range of applications.
• Oil-Based Suspensions employ light petroleum distillates as carriers, offering superior corrosion protection and suitability for components prone to rust. They are preferred in situations where water could adversely affect the test material.

Selecting the appropriate combination of equipment and materials is crucial for effective Magnetic Particle Testing, ensuring accurate detection of flaws and maintaining the integrity of the components under inspection

Step-by-Step Magnetic Particle Testing Procedure

Magnetic Particle Testing (MPT) is a non-destructive method that finds surface and near-surface flaws in ferromagnetic materials. The process follows key steps to ensure accurate and reliable results.

Surface Preparation

Thoroughly clean the test surface to remove contaminants such as oil, grease, dirt, and rust, which could interfere with the inspection process. Generally, a clean surface ensures proper particle adherence and accurate defect detection.

Application of Magnetic Field

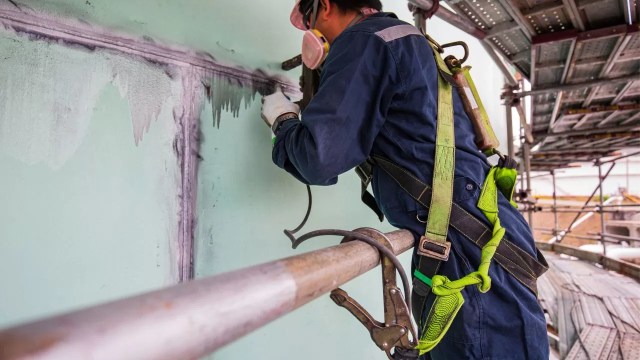

Apply a magnetic field to the component using yokes, coils, or prods. The method depends on the part’s shape and inspection needs. Yokes create a field between two poles for localized testing. Coils generate a longitudinal field for cylindrical or simple-shaped parts. Prods introduce current directly, producing a strong, localized field. When magnetized, any flaw in the material distorts the field, causing flux leakage. This leakage attracts magnetic particles, making defects visible. Proper magnetization is crucial for accurate results. Inspectors must choose the right technique to ensure full coverage and reliable detection of surface and near-surface discontinuities.

Application of Magnetic Particles

Apply magnetic particles to the magnetized surface using dry powder or a liquid suspension. These particles spread across the surface and gather where magnetic flux leaks due to flaws like cracks. Dry particles work well for field inspections, while wet suspensions offer better sensitivity for fine defects. The inspector ensures even coverage to detect all possible flaws. Under proper lighting or UV light for fluorescent particles, defect indications become visible. This step is crucial for identifying the exact location and size of discontinuities. Correct application improves detection accuracy and ensures reliable inspection results in Magnetic Particle Testing (MPT).

Inspection Under Appropriate Lighting Conditions

Carefully inspect the surface for particle build-up, as this often indicates defects. To enhance visibility, use proper lighting techniques. For non-fluorescent particles, rely on bright white light, ensuring even illumination. On the other hand, for fluorescent particles, use ultraviolet (UV-A) light in a dark environment to make defects stand out more clearly. Additionally, adjust the light source as needed to achieve full coverage and eliminate any shadows. Proper lighting plays a crucial role in accurate detection. Following these steps ensures reliable Magnetic Particle Testing (MPT) results. This ultimately improves safety and quality in inspections.

Demagnetization Process

After inspection, demagnetize the component to eliminate any residual magnetism, which could affect its performance or interfere with future inspections. This step is crucial for maintaining the material’s integrity.

Post-Inspection Cleaning

Clean the component to remove any remaining magnetic particles and inspection residues. This ensures the part is free from contaminants and ready for service or further processing.

Adhering to these steps in the MPT process ensures the accurate detection of defects, contributing to the safety and reliability of critical components.

Types of Discontinuities Detected by MPT

Magnetic Particle Testing (MPT) is a non-destructive testing method used to identify surface and near-surface discontinuities in ferromagnetic materials. It is particularly effective in finding out various types of flaws that can compromise the integrity of components.

Surface Cracks

Surface cracks on the material’s exterior is due to fatigue, stress, or mechanical damage. In Magnetic Particle Testing (MPT), these cracks disrupt the magnetic field, causing flux leakage. Consequently, magnetic particles gather at these leakage points, making the cracks clearly visible. This method effectively detects cracks early, thereby preventing potential failures. Moreover, regular inspection enhances safety and extends the durability of critical components across various industries. As a result, industries can minimize risks, reduce maintenance costs, and ensure reliable operations.

Subsurface Flaws

Subsurface flaws, like voids or inclusions, lie just beneath the surface and are not visible. In Magnetic Particle Testing (MPT), these flaws disrupt the magnetic field if they are close enough. This disruption creates flux leakage, which in turn attracts magnetic particles to the flaw’s location. As a result, the gathered particles form visible patterns, making it easier for inspectors to detect hidden defects. By identifying these flaws early, industries can prevent costly failures and enhance material reliability. Moreover, regular inspections improve overall safety and extend the lifespan of critical components, ensuring smooth and efficient operations.

Inclusions and Seams

Inclusions are non-metallic materials trapped in metal during manufacturing. Seams are long, narrow defects caused by structural imperfections. Both disrupt the magnetic field in MPT, creating flux leakage. Magnetic particles gather at these spots, making the flaws visible.

Detecting these defects helps prevent failures and ensures the reliability of ferromagnetic components. MPT is essential for maintaining safety and quality in industries like aerospace, automotive, and construction.

Advantages of Magnetic Particle Testing

Magnetic Particle Testing (MPT) is a non-destructive testing method used to detect surface and near-surface flaws in ferromagnetic materials. It is widely utilized across various industries due to its effectiveness and efficiency.

• High Sensitivity – MPT effectively detects surface and near-surface defects, including cracks, seams, and laps.
• Quick and Efficient – The testing process is fast, providing immediate results for quick decision-making.
• Cost-Effective – MPT is an economical method compared to other NDT techniques, requiring minimal equipment.
• Portable Equipment – Handheld yokes and compact units allow inspections in various locations, including field applications.
• Detects Fine Defects – Fluorescent particles enhance defect visibility, improving detection accuracy.
• Works on Coated Surfaces – MPT can be performed on thinly coated surfaces, reducing the need for surface preparation.
• Minimal Training Required – Operators can learn MPT quickly compared to more complex NDT methods.
• Versatile Application – Used in automotive, aerospace, railways, and manufacturing industries for safety and quality assurance.
• Reliable Results – Consistently identifies defects that could lead to material failure.

Limitations of Magnetic Particle Test

Magnetic Particle Testing (MPT) is a widely used non-destructive testing method, but it has several limitations:

• Material Restriction: MPT is limited to ferromagnetic materials. This includes materials such as iron and steel. It cannot be used on non-ferromagnetic materials like austenitic stainless steel.
• Surface Condition: The accuracy of MPT can be affected by surface conditions. Rough or dirty surfaces may hinder defect detection. Proper cleaning is necessary before inspection.
• Depth Limitation: MPT is effective for detecting surface and near-surface defects but may not identify deeper flaws within the material.
• Demagnetization Requirement: After testing, components may retain residual magnetism, requiring demagnetization to prevent interference with their intended function.
• Coating Thickness: Thick paint or coatings can impede the detection of defects. MPT is less effective on heavily coated surfaces.
• Orientation Sensitivity: Defects not aligned perpendicularly to the magnetic field may go undetected. Inspections from multiple directions are necessary to ensure comprehensive evaluation.
• Electrical Power Dependence: Most MPT methods require a consistent electricity supply, limiting their applicability in remote or power-scarce environments.
• Interpretation Challenges: Non-relevant indications can occur. This makes the interpretation of results challenging. Skilled personnel are required to distinguish between true defects and false indications.

Understanding these limitations is crucial for selecting the appropriate non-destructive testing method for specific applications.

Comparison with Other NDT Methods

MPT is quicker and more affordable than UT but only works on ferromagnetic materials and detects surface or near-surface flaws. UT can find internal defects in various materials, including non-ferromagnetic ones. However, it needs advanced equipment and skilled operators.

MPT is cleaner and gives instant results without waiting for development. However, LPT works on non-ferromagnetic materials and can detect finer surface defects across more materials.

The selection of an appropriate NDT method depends on several factors. These include material type, defect nature, inspection environment, and required sensitivity.

Here’s a comparison of Magnetic Particle Testing (MPT) with other common Non-Destructive Testing (NDT) methods

Aspect	Magnetic Particle Testing (MPT)	Ultrasonic Testing (UT)	Liquid Penetrant Testing (LPT)
Material Suitability	Effective only on ferromagnetic materials (e.g., iron, nickel, cobalt, and their alloys).	Applicable to a wide range of materials, including metals, plastics, and composites.	Suitable for non-porous materials, both ferrous and non-ferrous.
Defect Detection	Detects surface and near-surface discontinuities.	Capable of identifying internal and surface defects.	Primarily identifies surface-breaking defects.
Portability	Equipment is generally portable, allowing for on-site inspections.	Equipment can be portable but often requires coupling medium and skilled operators.	Highly portable with minimal equipment needed.
Cost	Relatively low-cost method.	Typically more expensive due to advanced equipment requirements.	Generally cost-effective with low equipment costs.
Surface Preparation	Requires clean surfaces; contaminants can hinder accuracy.	Surface condition can affect accuracy; requires good contact.	Requires thorough cleaning to remove contaminants before application.
Speed	Provides immediate results, facilitating quick decision-making.	Results require analysis; not always immediate.	Quick application and inspection process.
Limitations	Not suitable for non-ferromagnetic materials; depth of detection is limited.	Requires skilled operators; surface roughness and geometry can affect results.	Only detects surface defects; not suitable for porous materials.

Applications of Magnetic Particle Testing

Magnetic Particle Testing (MPT) is a non-destructive testing method widely used to detect surface and near-surface discontinuities in ferromagnetic materials. Moreover, its versatility makes it invaluable across various industries, ensuring the integrity and safety of critical components. By identifying defects early, MPT helps prevent failures, reduce maintenance costs, and enhance overall reliability. As a result, industries like aerospace, automotive, and construction rely on MPT to keep high safety and quality standards.

Industries Utilizing MPT

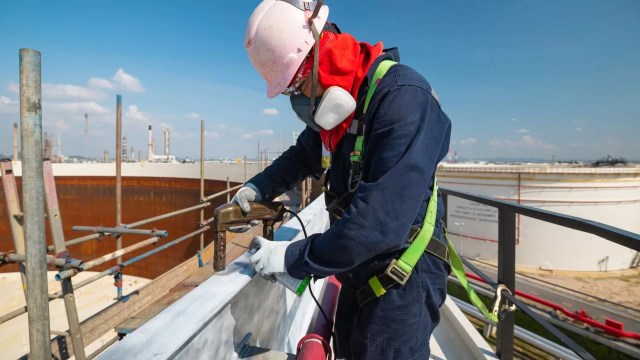

Construction: MPT assesses the structural integrity of buildings, bridges, and infrastructure by detecting surface and near-surface flaws in steel structures.

Specific Use Cases and Examples of Magnetic Particle Test

Railway Industry: Regular MPT of rails and wheels detects fatigue cracks, preventing derailments and ensuring safe train operations.

Role of Magnetic Particle Testing in Quality Assurance and Inspection Works

Magnetic Particle Testing (MPT) is a vital non-destructive testing method widely used in quality assurance and inspection. Not only does it detect surface and near-surface defects in ferromagnetic materials, but it also ensures safety, reliability, and compliance across various industries. Furthermore, by identifying flaws early, MPT helps prevent failures, reduces maintenance costs, and enhances overall operational efficiency. Consequently, industries rely on this method to uphold high standards and improve equipment performance.

Detecting Hidden Defects

Magnetic Particle Testing (MPT) helps identify surface and near-surface defects such as cracks, seams, and inclusions in ferromagnetic materials. These flaws are not be visible to the naked eye but can compromise structural integrity. The magnetic field highlights defect areas, allowing particles to accumulate and make them visible. This technique ensures that critical flaws are detected early, preventing unexpected failures in industrial components.

Ensuring Safety in Critical Components

Safety is a major concern in industries such as aerospace, automotive, and construction. MPT helps inspect critical components like welds, castings, and machined parts, ensuring they meet quality standards. Faulty components can cause severe accidents, but regular MPT inspections help maintain operational safety. By detecting defects early, MPT prevents equipment malfunctions, reducing risks to workers and the environment.

Fast and Efficient Testing

One of the key advantages of MPT is its speed and efficiency. Unlike other non-destructive testing (NDT) methods, MPT provides immediate results. Inspectors can analyze defects in real-time without needing extensive post-processing. This makes it ideal for high-volume inspections, such as during routine maintenance or production line checks. Its ability to deliver quick results helps industries minimize downtime and maintain productivity.

Compliance with Industry Standards

Many industries follow strict quality control and safety regulations. MPT ensures that components meet required industry standards before they are used. Organizations such as ASME and ASTM set guidelines for proper inspection techniques. Regular MPT inspections help companies comply with these standards, preventing legal and operational issues. Adhering to quality assurance protocols also enhances a company’s reputation for reliability.

Preventing Costly Failures

Undetected defects can result in costly repairs, operational delays, or even catastrophic failures. However, MPT helps detect issues early, significantly reducing maintenance costs and extending the lifespan of critical components. Moreover, by investing in regular inspections, companies can prevent expensive replacements and improve equipment performance. Ultimately, prevention through MPT ensures safer, more reliable, and cost-effective operations, allowing industries to maintain efficiency while minimizing risks.

Magnetic Particle Testing plays a crucial role in inspection work. It ensures safety, reliability, and compliance while providing fast and accurate defect detection. Regular inspections help industries prevent failures, reduce costs, and maintain high-quality standards.

Recent Advances and Future Trends in Magnetic Particle Testing

Magnetic Particle Testing (MPT) has seen significant advancements, enhancing its efficiency and accuracy.

Technological Innovations

Recent developments in MPT include the adoption of automated systems and robotics, which minimize human error and provide consistent results. High-resolution sensors and energy-efficient electromagnets have improved defect detection capabilities, allowing for the identification of smaller imperfections even under challenging conditions. Additionally, innovations in fluorescent magnetic particles have increased the visibility of defects, facilitating more precise inspections.

The integration of digital technologies into MPT has revolutionized data analysis and record-keeping. Advanced automation and augmented reality (AR) tools enhance defect visualization, enabling inspectors to assess flaws more effectively. Real-time data analysis systems provide immediate feedback, streamlining the inspection process and improving decision-making. These digital enhancements contribute to more reliable and efficient testing procedures.

Future Prospects and Research Directions

The future of MPT will bring exciting innovations, focusing on AI and machine learning to predict defects and optimize inspection settings. Researchers are also developing eco-friendly testing materials to reduce environmental impact. As industries focus on safety and quality, MPT will continue evolving with advanced technology. It will adopt sustainable practices. This will guarantee more efficient and reliable inspections.

Key takeaways from Magnetic Particle Testing (MPT):

• Non-Destructive Testing Method: MPT detects surface and near-surface defects in ferromagnetic materials without causing damage.
• Material Suitability: Effective only on ferromagnetic materials like iron, nickel, cobalt, and their alloys.
• Advantages: Simple, fast, and cost-effective method for detecting surface and slightly subsurface discontinuities.
• Limitations: Not suitable for non-ferromagnetic materials; may not detect very fine or deeply embedded defects.
• Recent Advancements: Incorporation of automation, high-resolution sensors, and digital technologies has enhanced accuracy and efficiency.
• Safety and Compliance: Proper handling, health precautions, and adherence to regulatory standards are essential for effective and safe MPT operations.

Conclusion

NDT Magnetic Particle Testing (MPT) is a vital non-destructive testing method for identifying surface and near-surface defects in ferromagnetic materials. Its cost-effectiveness and efficiency make it indispensable across industries such as aerospace, automotive, and construction, ensuring the safety and reliability of critical components. Recent technological advancements, including automation and digital integration, have enhanced MPT’s accuracy and applicability. Adherence to proper handling procedures, health precautions, and regulatory standards is essential for effective and safe MPT operations. As industries continue to prioritize quality assurance, MPT’s role remains crucial in maintaining structural integrity and preventing failures. Ongoing research and technological integration promise to further advance MPT’s capabilities, solidifying its importance in modern industry.
